Thermoplastic polyolefin (TPO) waterproof material

Product introduction:

HGT-100 series thermoplastic polyolefin (TPO) waterproof material is a kind of thermoplastic elastomer material, which is made of vinyl chloride as the base material, adopting advanced polymerization technology and special formula. Physical performance is stable, the construction is convenient, environmental friendly. It will become the mainstream of domestic waterproof material products in the future.

Advantages
Specification
Performance

Application Range

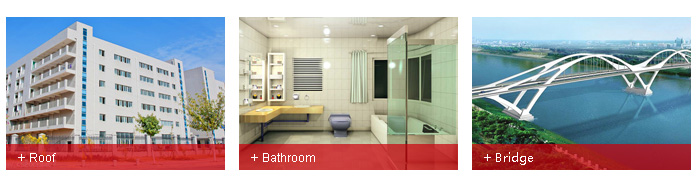

Used for all kinds of roof waterproof projects for various industrial building, civil building and public building etc.

Serial number	Item	GB
Serial number	Item	H	L	P
1	layer thickness/mm≥	—		0.40
2	Maximum tension(N/cm)≥	—	200	250
2	tensile strength/MPa≥	12	—	—
3	Maximum tensile elongation/%≥	—	—	15
3	elongation at break/% ≥	500	250	—
4	Heat treatment size rate of change/%≤	2.0	1.0	0.5
5	Cold bending	-40℃non-crack
6	Waterproofness	0.3MPa, 2hwaterproof
7	shock resistance(Kg.m)	0.5no seepage
8	Anti static load/kg	—		20no seepage
9	peel strength/(N/mm)≥	4.0or damage		3.0
10	tangential breaking strength/(N/mm)≥	60	—	—
11	trapezoidal tearing strength/N ≥	—	250	450
12	water absorption(70℃，168h)/% ≤	4.0
